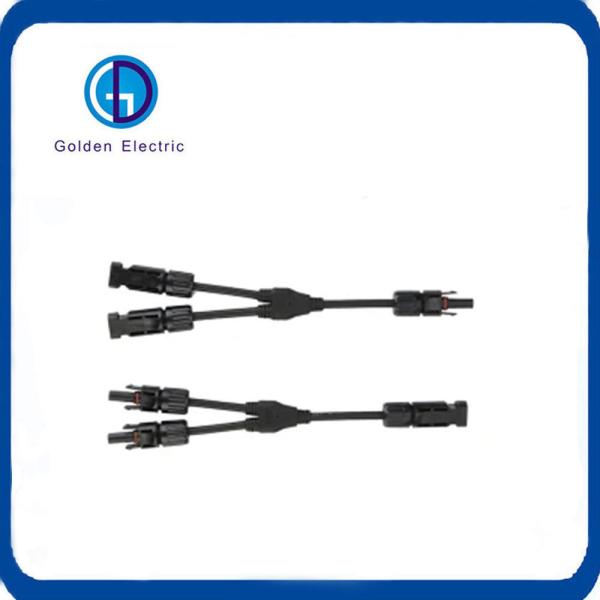

Copper IP67 Waterproof Solar Y Branch Connectors With Lightning Protection

Name: Copper IP67 Waterproof Solar Y Branch Connectors With Lightning Protection
Brand: Golden Electric /OEM
Price: 1 USD

Cheap Copper IP67 Waterproof Solar Y Branch Connectors With Lightning Protection for sale

Model Number : PV004

Model NO. : PV004-2T1

Product Name : Mc4 Solar Connector

Rated Voltage : 1000V

Rated Current : 30A

Shape : Round

Protection Degree : IP67

Connector Type : Adaptor

Warranty : 2 Years

Contact Resistance : Below 5m

Name : Solar Cable Connector

Transport Package : Standard Export Carton

Specification : 2.5/4/6 14/12/10AWG

Trademark : Golden or netural, or customer brand

Origin : China

HS Code : 8537209000

Supply Ability : 5000/Month

Gender : Male and Female

Pin : 2 Pins

Application : Solar PV System

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Terminal Material : Copper

Interface Type : DC/DC

Customization : Available | Customized Request

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

MC4 Solar Panel Cable Connectors with Assembly Tool,10 Pairs Copper Solar Wire Adapter Male/Female Waterproof Connector for Connecting Solar Panels 1000V 30A.

Possess excellent resistance to high temperature, fire protection, anti-aging and anti-UV properties, to meet the outdoor longterm use under harsh environmental conditions require.

Excellent sealing performance, waterproof and dustproof rating up to IP67.
Male and female head swap with a self-locking, electrical connections fully reliable, open and close freely.
Has broad applicability, can be inserted with the MC4 and match each other completely.

Copper IP67 Waterproof Solar Y Branch Connectors With Lightning Protection

High Quality Raw Material PPO,PC

Approved by TUV and CE certification, high heat resistance, wear resistance, pollution resistance, strong toughness.

Tinned Plated Copper Inner Core

Open core,wear resistance, corrosion resistance, prevent rust.

High Strength Waterproof Ring

Dustproof, Waterproof, Protection degree IP67

Stable Self - Locking Structure

The joint adopts compression and fastening mode, the male and female head has self-locking structure to open and close freely .

Insulation Waterproof

Built-in high quality lock head, delicate, firm, sealed, insulating, to guide and prevent electric shock.

Technical Data
Type	PV004-2to1
Rated Voltage	1000VDC
Rated impulse voltage	8000V
Rated insulation voltage	6000V
Rated Current	10A,20A
Standard	EN50521:11-2008
Protection Degree	IP67
Contact Resistance	≤5mΩ
Pollution Degree	2
Ambient Temperature	-40~+85°C
Cable cross section area	4,0 mm²
Insulation Material	PC EXL9330
Flame Class	UL94-V0

Copper IP67 Waterproof Solar Y Branch Connectors With Lightning Protection
