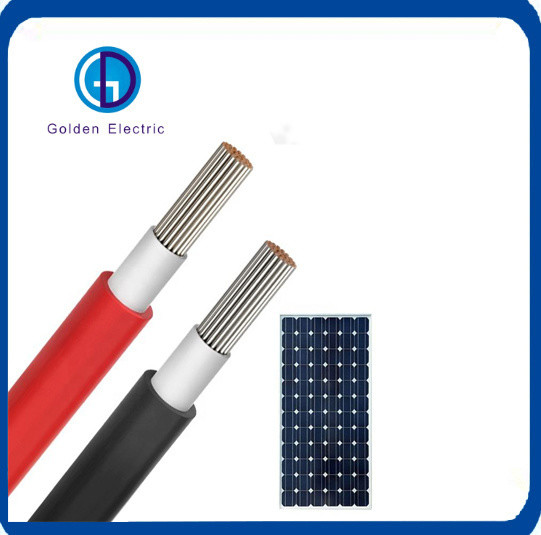

TUV Approval Tinned Copper 4mm2 PV Cable Low Voltage For Solar Panel

Name: TUV Approval Tinned Copper 4mm2 PV Cable Low Voltage For Solar Panel
Brand: Golden Electric /OEM
Price: 1 USD

Cheap TUV Approval Tinned Copper 4mm2 PV Cable Low Voltage For Solar Panel for sale

Jacket : Xlpo

Product Name : Battery DC 4mm2 6mm2 10mm2 16mm2 PV Solar Pow

Color : Customized

Conductor : Tinned Copper

Certificate : TUV

Standard : IEC60228

Insulation : Xlpo

Core : 1-2 Core

Rated Voltage : 0.6/1kv AC 1500V DC

Keywords : PV Solar Power Cable Wire for Solar Panel

Working Temperature : -40ºC-90ºC

Transport Package : Wooden Case/Plastic Film Case

Specification : Different sizes and specifications

Trademark : Golden Electric or Customize

Origin : China

HS Code : 8543709990

Supply Ability : 5000/Month

Type : Insulated, Low Voltage

Conductor Type : Low Voltage

Application : Underground, Power Station

Conductor Material : Copper, Tinned Copper

Insulation Material : Xlpo

Model Number : Solar Cable

Customization : Available | Customized Request

Place of Origin : China

Brand Name : Golden Electric /OEM

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Contact Now

GoldenElectricCo., Ltd.
is professional make of Electrical products .Such as distribution box, waterproof plug, socket, wall switch, waterproof plastic ,Aluminum box ,Changeover Switch and disconnecting switch,MC4 Connector.isolator switch.fusebreaker.distribution box,PV combiner box .surge protector, Indicatorlamp,Solar Charge Controller,Industrialplugandsocket,BusbarInsulator,Meter Socket,Wind Turbine, Terminal Block,Solar product and so on. all products comply with IEC, A S/NZS standard. passed CE, IP66, ROHS certificates.at present we have exported to many countries and have serve these customers with professional electrical solution.

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

Rating Voltage	DC: 1 500V / AC: 1.0 kV
Temperature	-40°C-- +90°C
Max. Temperature at Conductor	120ºC
Protection Class	II
Conductor	Tinned annealed copper
Insulation	120°C XLPO, white
Jacket	120°C LSZH, black or red
Certification	TUV (Tested according to: EN 50618:2014 and IEC 62930(ed.1) )

TUV Approval Tinned Copper 4mm2 PV Cable Low Voltage For Solar Panel

No. Of cores x Construction (mm2)	Conductor Construction (n / mm)	Conductor No./mm	Insul. Thick. (mm)	Current Aarring Capacity (A)
1x1.5	30/0.25	1.58	4.9	30
1x2.5	50/0.256	2.06	5.45	41
1x4.0	56/0.3	2.58	6.15	55
1x6	84/0.3	3.15	7.15	70
1x10	142/0.3	4.0	9.05	98
1x16	228/0.3	5.7	10.2	132
1x25	361/0.3	6.8	12.0	176
1x35	494/0.3	8.8	13.8	218
1x50	418/0.39	10.0	16.0	280
1x70	589/0.39	11.8	18.4	350
1x95	798/0.39	13.8	21.3	410

1Gnag Socket 13A Waterproof Socket Power Electrical Steel Distribution Box Electrical Enclosure

Waterproof Plastic Industrial Socket Distribution Box Induatrial Weather Protected Changeover Switch

Picture Example:

Lead time:

Quantity(meters)	1 - 5000	>5000
Lead time (days)	15	To be negotiated

Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices vary.

Any more query please contact with us, thank you!
